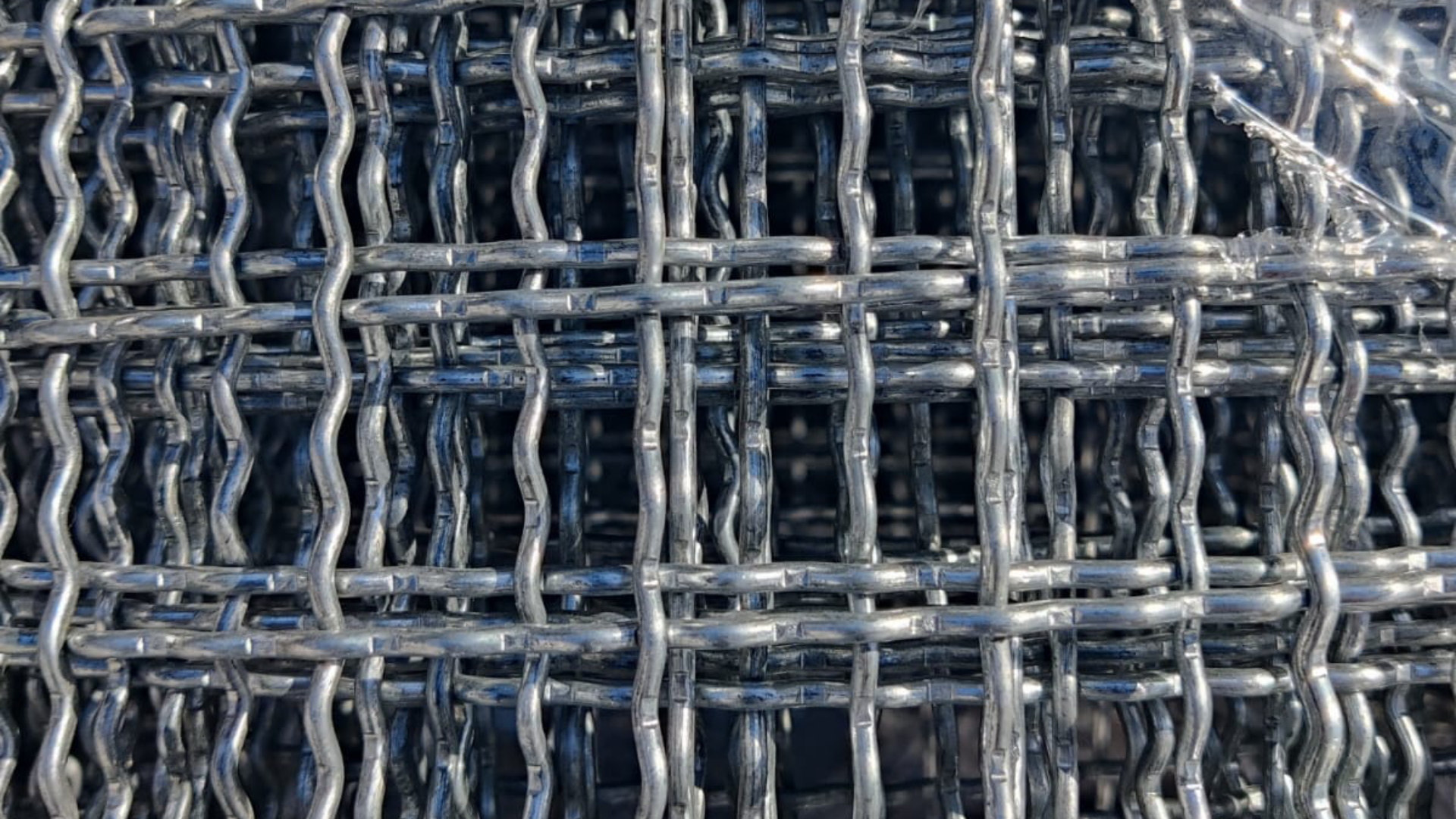

Bharat Industries is a trusted manufacturer and supplier of Crimped Wire Mesh
Known for its superior quality and durability Designed to withstand all weather conditions, our wire meshes offer high corrosion resistance, exceptional strength, and long-lasting performance.
Crimped Wire Jali are available in a variety of sizes and finishes, we provide customized solutions to meet diverse industrial and commercial needs.
Crimped Wire Mesh is widely used in various applications, including industrial fencing, highways, railways, airports, and housing. Its strength, durability, and resistance to corrosion make Crimped Wire Mesh a reliable choice for various commercial and infrastructure applications.
Our Applications
Highway Fencing
Industrial Fencing
Railway
Airport
Institutions
Housing
APPROX WEIGHT PER SQ. FEET
| SR. NO. | MESH SIZE (MM) SIZE | WIRE DIA (MM) | WIDTH X LENGTH | APP. WT. |
|---|---|---|---|---|
| 1 | 1X1X10 swg (HEAVY) (30mm x 30mm) | 2.90mm/3.00mm (11 swg) | 4X50 | 66 KGS |
| 2 | 1X1X10 swg (LIGHT) (30mm x 30mm) | 2.70mm/2.80mm (11 swg) | 4X50 | 62 KGS |
| 3 | 1X1X12 swg (HEAVY) (30mm x 30mm) | 2.50mm/2.65mm (12 swg) | 4X50 | 50 KGS |
| 4 | 1X1X12 swg (LIGHT) (30mm x 30mm) | 2.30mm/2.40mm (12/13 swg) | 4X50 | 45 KGS |
| 5 | 1X1X14 swg (25mm x 25mm) | 1.90mm/2.00mm (14 swg) | 4X50 | 31 KGS |
| 6 | Olll x Olll x 10 swg (22mm x 22mm) | 2.70mm/2.80mm (11 swg) | 4X50 | 76 KGS |
| 7 | Olll x Olll x 12 swg (23mm x 23mm) | 2.50mm/2.65mm (12 swg) | 4X50 | 62 KGS |
| 8 | Olll x Olll x 12 swg (L) (23mm x 23mm) | 2.30mm/2.40mm (12/13 swg) | 4X50 | 43 KGS |
| 9 | Olll x Olll x 14 swg (23mm x 23mm) | 1.90mm/2.00mm (14 swg) | 4X50 | 45 KGS |
| 10 | 5/8 x 5/8 14 swg (18mm x 18mm) | 1.90mm/2.00mm (14 swg) | 4X50 | 52 KGS |
| 11 | Oll x Oll x 14 swg (16mm x 16mm) | 1.90mm/2.00mm (14 swg) | 4X50 | 60 KGS |
| 12 | Oll x Oll x 16 swg (16mm x 16mm) | 1.60mm/1.65mm (16 swg) | 4X50 | 40 KGS |
| 13 | 12mm x 12mm x 14 swg | 2.00mm | 4X50 | 66 KGS |
| 14 | 12mm x 12mm x 16 swg | 1.62mm | 4X50 | ----- |
| 15 | 10mm x 10mm x 14 swg | 2.00mm | 4X50 | 90 KGS |
| 16 | 10mm x 10mm x 16 swg | 1.62mm | 4X50 | 50 KGS |
| 17 | 8mm x 8mm x 14 swg | 2.00mm | 4X50 | 96 KGS |
| 18 | 8mm x 8mm x 16 swg | 1.62mm | 4X50 | 56 KGS |
